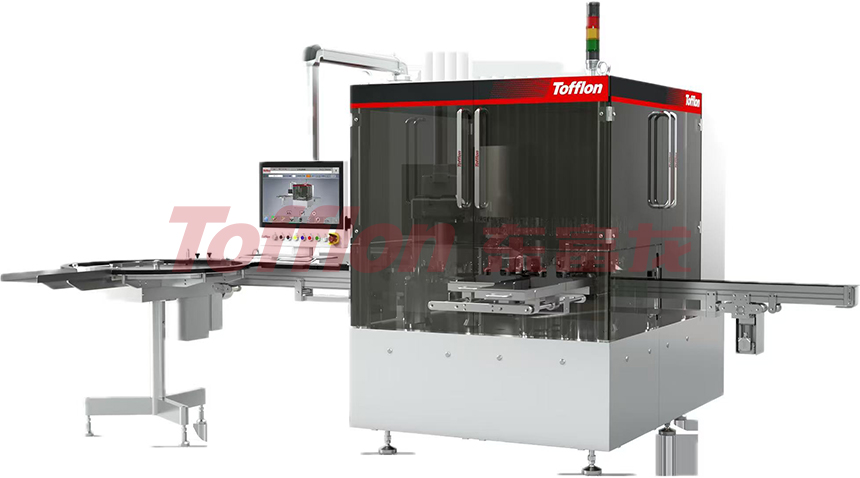

Liquid Vial Automatic Visual Inspection Machine
Tofflon’s intelligent visual inspection machine integrates advanced European design concepts and cutting-edge technology, featuring an innovative clamping mechanism for gripper redefines traditional inspection methods. This design ensures each item is fully exposed to the light source and illumination system, eliminating blind spots and dead angles for 100% inspection coverage. The unique baseless clamping design enhances GMP compliance and simplifies both operation and cleaning, providing a streamlined and highly efficient inspection process.

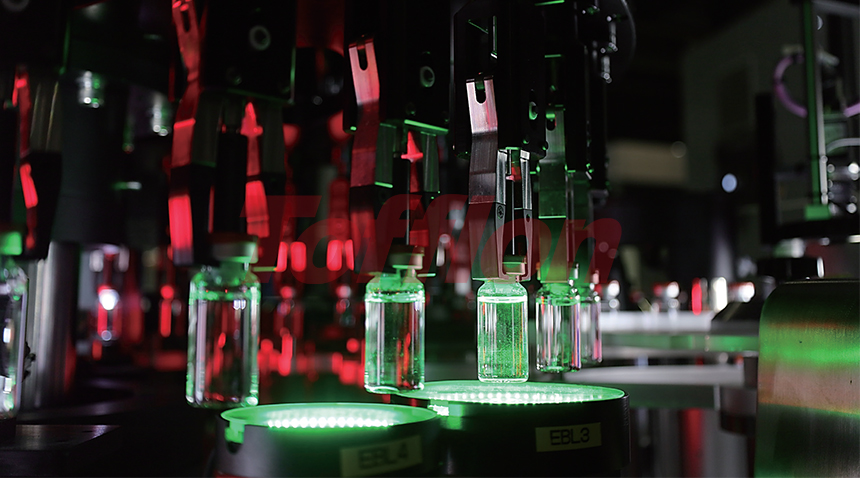

- The specialized baseless clamping jaw design, integrated with Cap detection, enables comprehensive, blind-spot-free product inspection for unparalleled accuracy and coverage.
- All designs are fully compliant with CGMP standards
- Employing direct drive (DD) motor technology, the system operates with zero backlash and wear, offering lifetime, maintenance-free performance.

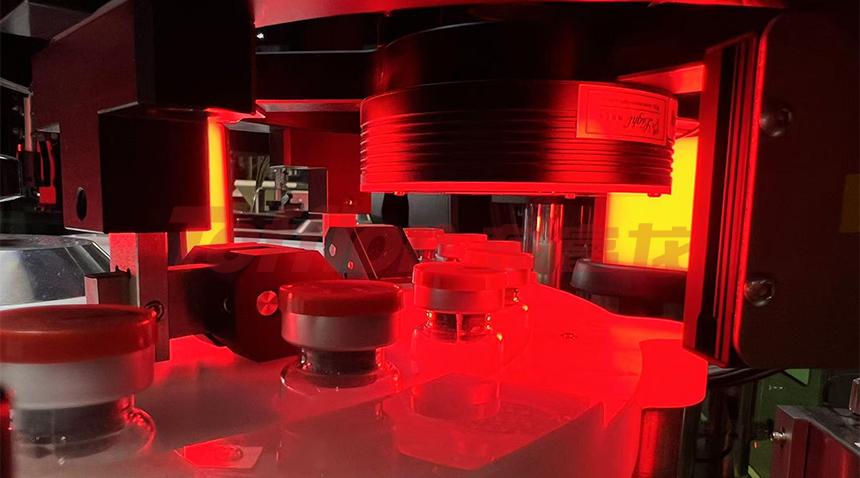

- The system utilizes three/four high-speed area-array CCD cameras to simultaneously capture images of the top and neck of each inspected bottle without requiring rotation. This approach significantly enhances inspection efficiency through continuous and tracking detection, effectively preventing bubble formation that may occur during intermittent inspections, which can compromise detection accuracy.
- Each foreign object detection station is equipped with multiple cameras, which extend the inspection duration for individual products and allow for the classification of non-conforming items, thereby enhancing quality control and statistical analysis. The system incorporates multiple fully independent detection stations, enabling the adjustment of parameters such as lighting techniques and rotation speeds to effectively detect various types of particles, thus providing a more comprehensive inspection capability.

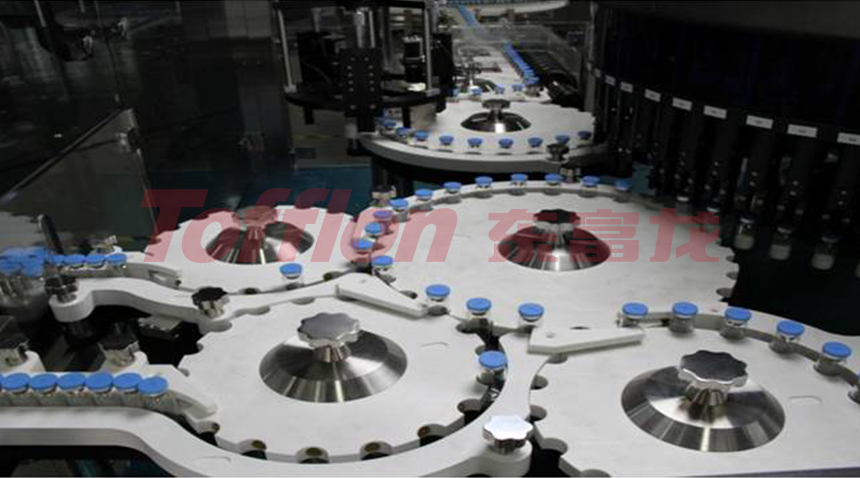

- Tofflon's visual inspection machine is equipped with a quick-connect clamping mechanism similar to plug and play that facilitates the easy and rapid replacement of specifications. The entire set of accessories, including clamps and star wheels, can be replaced in under 60 minutes, ensuring minimal downtime and enhanced operational efficiency.
-

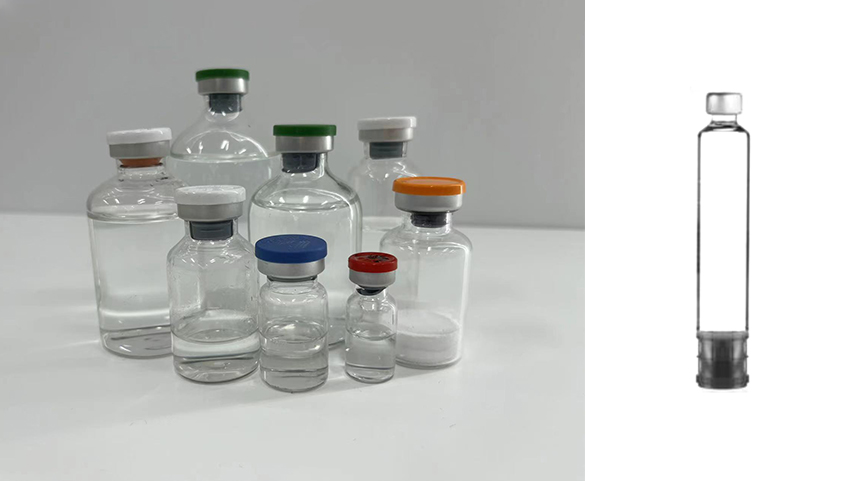

Liquid Vials
-
Oral Liquid Vials
-
Cartridges
