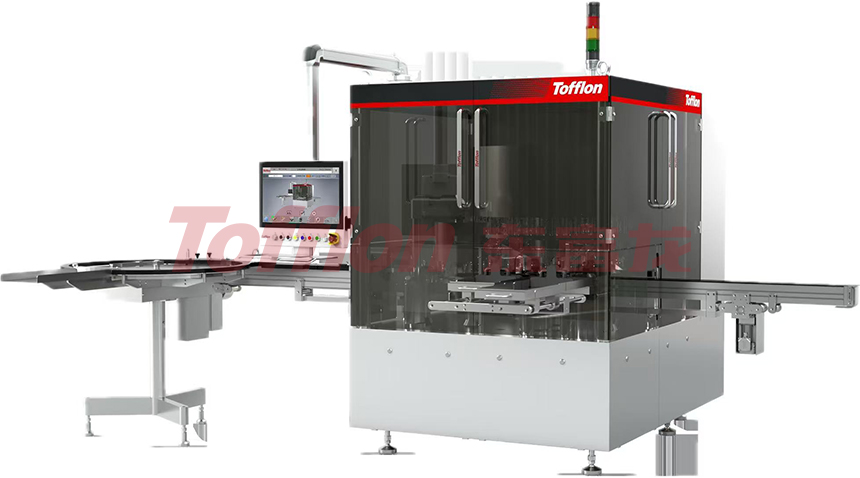

Lyo/Powder Vial Automatic Visual Inspection Machine
Tofflon Automated Visual Inspection Machine incorporates advanced European design concepts and technology integration. Its innovative clamping design revolutionizes the traditional inspection method, ensuring that each inspected product is free from dead angles or blind spots in terms of light source and illumination system physical design, enabling 100% detection. The special bottomless clamping design better aligns with GMP requirements, making the machine easier to operate and clean."
- "Stepless speed regulation: The bottle rotation is achieved through a servo motor, allowing for easy stepless speed adjustment to meet the requirements of the inspection process. The inspection has no blind spots. In a base-type structure, the bottle bottom comes into contact, creating blind spots that the camera cannot capture."
- The machine Adopts main axle hanging design, the up-and-down transmission is fully sealed and effectively isolated. Should a container fall down or get broken during inspection process it can be cleaned very easily with no contamination in machine critical components such as axle , gripper , sensors, cameras etc.
- The machine is validated using KNAPP testing protocol, recognized by both the European Pharmacopoeia and the US FDA ensuring comprehensive validation. The system is highly adaptable, with the capability to seamlessly integrate Head Space gas Analyser (HGA) leak detection functionality for enhanced performance and reliability.
- Fast Data image transmission with higher inspection accuracy.
- Particles as small as 40 microns can be effectively inspected within in 0.6 second. DD motor technology, or direct drive motor technology, method is opted for transmitting the rotational force of an electric motor to a drive object without mechanical components like belts, pulleys, or gears. The system features advanced EtherCAT high-speed transmission technology, ensuring rapid data transfer and efficient communication. Enables fast transmission speeds and high-performance image processing, optimizing the overall speed and accuracy of the inspection process.

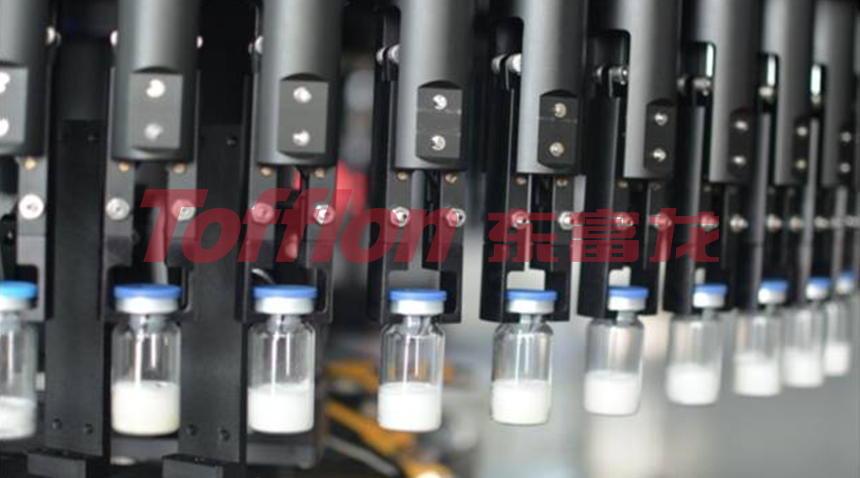

- The design features no blind spots and a bottomless structure, ensuring optimal lighting and inspection conditions with no detection blind spots. The pressure of the clamping jaws is precisely set and controlled to prevent bottle breakage, the gripper head is adaptable to accommodate different bottle shapes, and the teeth for the clamping jaws can be easily replaced.
-
Lyo Vial
-
Powder Vial
