Horizontal Freeze-thaw System
The horizontal freeze-thaw system is a set of controlled freezing and remelting technology for the biopharmaceutical field, mainly used in vaccines, monoclonal antibodies, recombinant proteins and other high value-added liquid biological products. The system adopts disposable technology, compatible with the mainstream freeze-thaw bags (1L~50L) on the market at present, and can be configured with corresponding freeze-thaw trays or freeze-thaw boxes, transfer vehicles (with insulation) to facilitate transport and product protection, and can ensure the storage and frozen transportation of biological stock liquid. The horizontal freeze-thaw system is a split structure composed of freeze-thaw host, TCU and control cabinet, which can be flexibly adjusted according to the customer's plant. The freezing range is 100L-300L, which meets the pilot test and production stage, and can be used in the CNC area.
- 1.Customization: According to customer output and batch, the equipment and related accessories can be customized design.
- 2.Software system FDA 21 CFR PART 11 requirements, with electronic signature function.

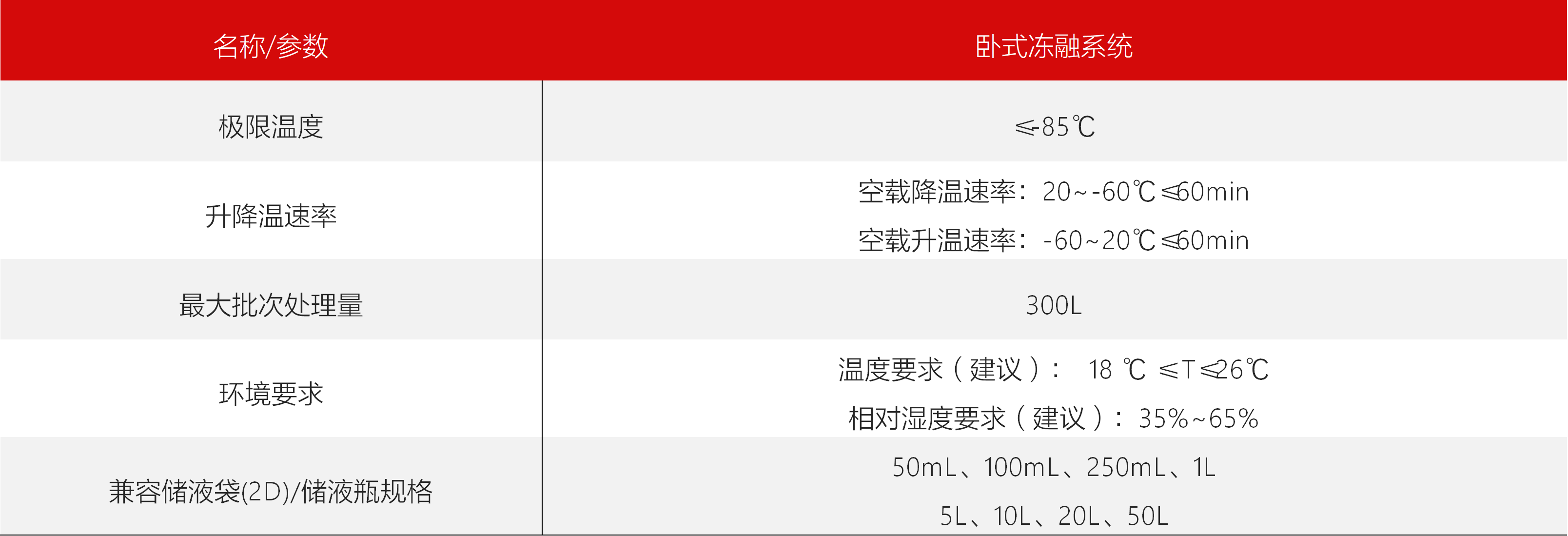

- 3.Wide temperature control range: +40℃~-85℃; Meet the freezing or thawing requirements of biological stock solution.
- 4.Optional swing function to accelerate heat circulation and improve thawing efficiency.


-
1.Product freezing/thawing.
-
2.CDMO business.
-
3.Study on stability of biological stock solution.
